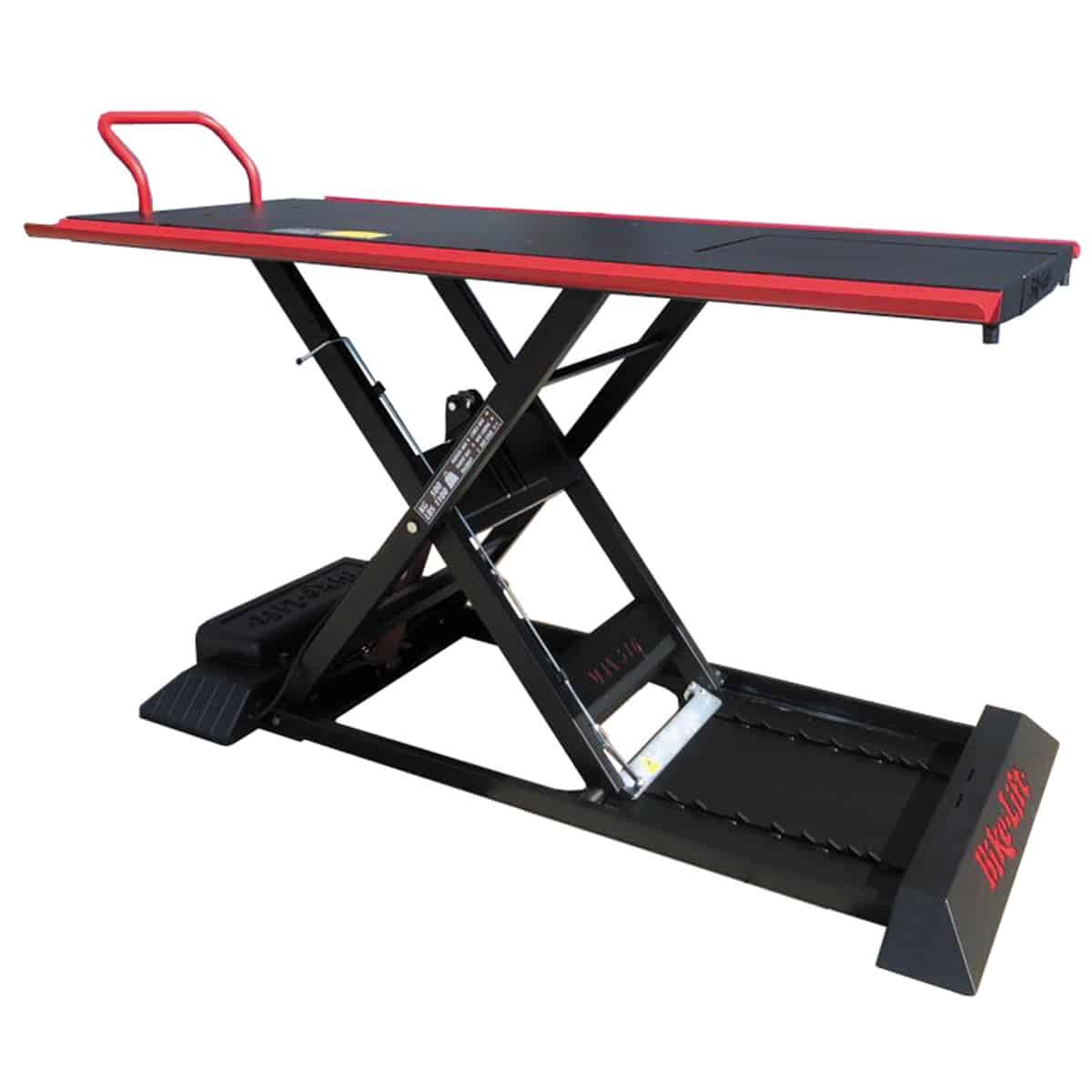

MAX GATE 516

The MAX GATE 516 is BIKE LIFT’s best-selling model. It represents a strong combination of technology and design, offering simple operation with excellent performance. Since its launch 15 years ago, many small improvements have been made, making it a complete and versatile machine for a wide range of workshops. Available with all pump options, from the foot pump to the electro-hydraulic power unit with remote control. It can also be used as a base for mounting the PSW516 extension wings, allowing the lift to operate with four-wheeled vehicles.

Available Versions:

  • MG516-001 Foot pump
  • MG516-002 Air pump
  • MG516-003 Electro-hydraulic pump
  • MG516-003/F Floor-mounted version
  • MG516-004/R Electro-hydraulic pump with remote control

Specifications:

  • Capacity: 500 kg
  • Max height: 120 cm
  • Minimum height: 20 cm
  • Lifting table size: 210 x 75 cm
  • Mobile ramp dimensions: 70 x 50 cm
  • Safe positions: 8
  • Overall dimensions of the lift: 220 x 99 cm
  • Side wings dimensions: 210 x 12 cm
  • Total lifting surface dimensions: 210 x 99 cm
  • Gate door dimensions: 60 x 36 cm
  • Weight: 235 kg

Electro-Hydraulic Power Unit:

  • Power: 1.1 kW
  • Europe: 230 Volts
  • Japan: 200 Volts
  • America: 110 Volts

Air Pump:

  • Air pressure: 7-10 Bar
  • Air consumption: 300L/Min

Standard Equipment:

  • Ramps: 1
  • Standard packaging: cardboard box with wooden pallet
  • Wheel stop: 1
  • Side wings: 2
  • PZA protective plate: 1

Delivery: Sportsbike gives you access to over 40,000 motorcycle parts from leading brands in Australia and Europe. We source these lifting benches from BIKE LIFT in Italy and ship them to Australia via sea freight. Shipping time is typically 6-8 weeks.

Need it quickly? Contact us before ordering and we'll confirm availability and lead time: info@sportsbike.com.au

SKU MG516
Brand Bike Lift
