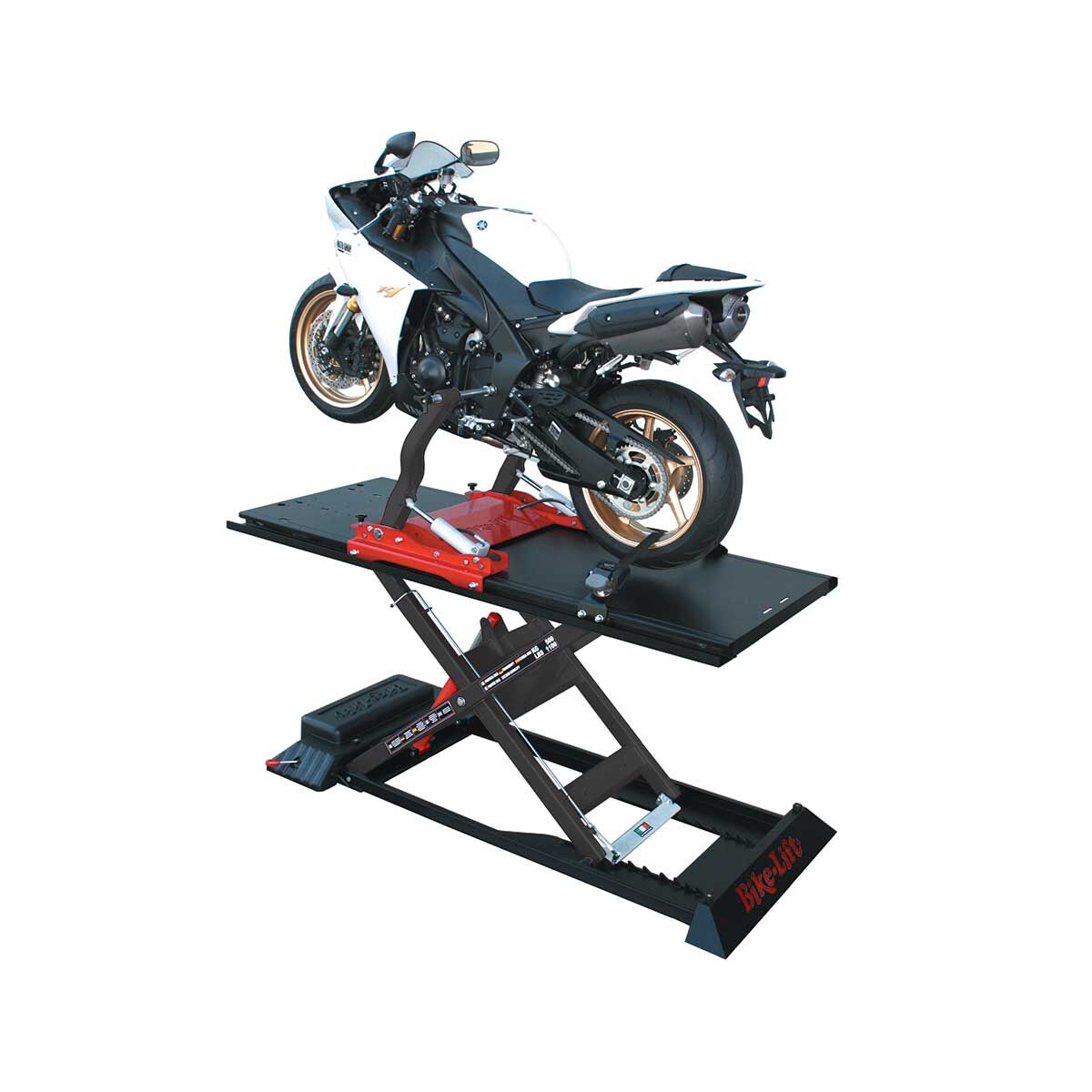

MAX TWIN ARMS 500

The MAX TWIN ARMS is one of the most complete and technologically advanced motorcycle lifts in the BIKE LIFT range. The classic lift structure is combined with a hydraulic lifting system using two synchronised arms. Once the footrests are secured or the through pin is inserted, the system allows one or both wheels to be lifted from the work surface.

Its versatility and simple vehicle management make the TWIN ARMS a unique lift, particularly suited to workshops carrying out frequent tyre changes or work on forks and shock absorbers. The maximum load capacity of the lift is 500 kg. It reaches a maximum height of 120 cm, while the two hydraulic arms can raise up to 60 cm. It is supplied with an automatic safety strap.

Available Versions:

  • IMTA516-003 Electro-hydraulic pump
  • MTA516-004/R Electro-hydraulic pump with remote control

Specifications:

  • Capacity: 500 kg
  • Max height: 120 cm
  • Minimum height: 20 cm
  • Safe positions: 8
  • Lifting table size: 210 x 75 cm
  • Ramp dimensions: 82 x 51 cm
  • Overall dimensions of the lift: 220 x 99 cm
  • Maximum capacity of hydraulic arms: 350 kg
  • Maximum height of hydraulic arms: 60 cm
  • Minimum height of hydraulic arms: 20 cm
  • Weight: 280 kg

Electro-Hydraulic Power Unit:

  • Power: 1.1 kW
  • Europe: 230 Volts
  • Japan: 200 Volts
  • America: 110 Volts

Standard Equipment:

  • Ramps: 1
  • Standard packaging: cardboard box with wooden pallet
  • W-36 vice: 1
  • Footrest supports: 2
  • Footrest straps: 4
  • Automatic belt: 1

Delivery: Sportsbike gives you access to over 40,000 motorcycle parts from leading brands in Australia and Europe. We source these lifting benches from BIKE LIFT in Italy and ship them to Australia via sea freight. Shipping time is typically 6-8 weeks.

Need it quickly? Contact us before ordering and we'll confirm availability and lead time: info@sportsbike.com.au

SKU MTA516
Brand Bike Lift
Unit Of Measure 1
