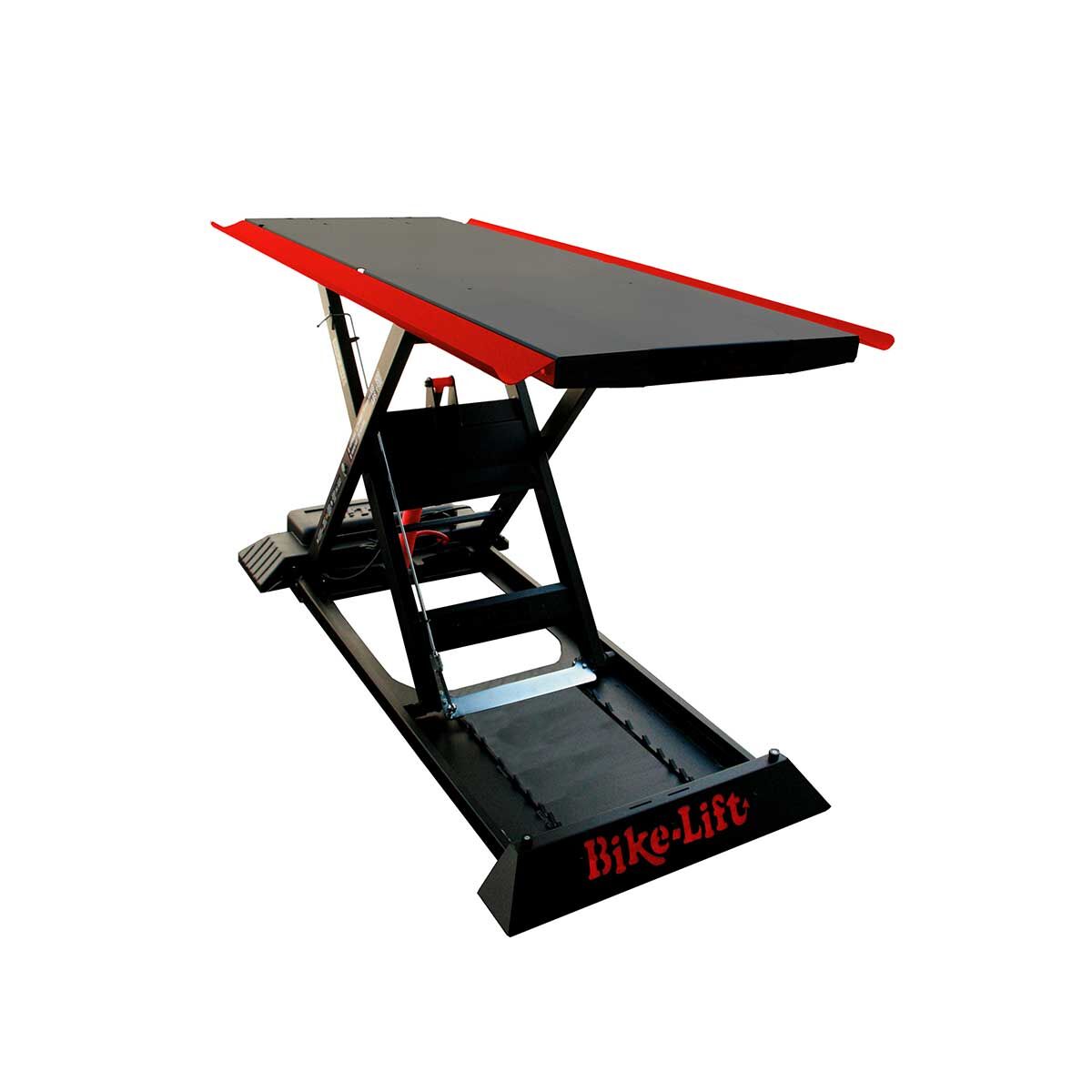

MAX 516

The MAX 516 is the version with a single lifting platform, without the GATE door. It is used as a base for the TWIN ARMS model thanks to its stability and smooth lifting movement. This model is also an ideal base for installing the PSW516 extension wings, which transform the motorcycle lift into a lift suitable for 4-wheel vehicles where the GATE panel is not required.

Available Versions:

  • M516-001 Foot pump
  • M516-002 Air pump
  • M516-003 Electro-hydraulic pump
  • M516-003/F Floor-mounted version
  • M516-004/R Electro-hydraulic pump with remote control

Specifications:

  • Capacity: 500 kg
  • Max height: 120 cm
  • Minimum height: 20 cm
  • Lifting table size: 210 x 75 cm
  • Mobile ramp dimensions: 82 x 51 cm
  • Safe positions: 8
  • Overall dimensions of the lift: 220 x 99 cm
  • Side wings dimensions: 210 x 12 cm
  • Total lifting surface dimensions: 210 x 99 cm
  • Weight: 235 kg

Electro-Hydraulic Power Unit:

  • Power: 1.1 kW
  • Europe: 230 Volts
  • Japan: 200 Volts
  • America: 110 Volts

Air Pump:

  • Air pressure: 7-10 Bar
  • Air consumption: 300L/Min

Standard Equipment:

  • Ramps: 1
  • Standard packaging: cardboard box with wooden pallet
  • Wheel stop: 1
  • Side wings: 2
  • PZA protective plate: 1

Delivery: Sportsbike gives you access to over 40,000 motorcycle parts from leading brands in Australia and Europe. We source these lifting benches from BIKE LIFT in Italy and ship them to Australia via sea freight. Shipping time is typically 6-8 weeks.

Need it quickly? Contact us before ordering and we'll confirm availability and lead time: info@sportsbike.com.au
