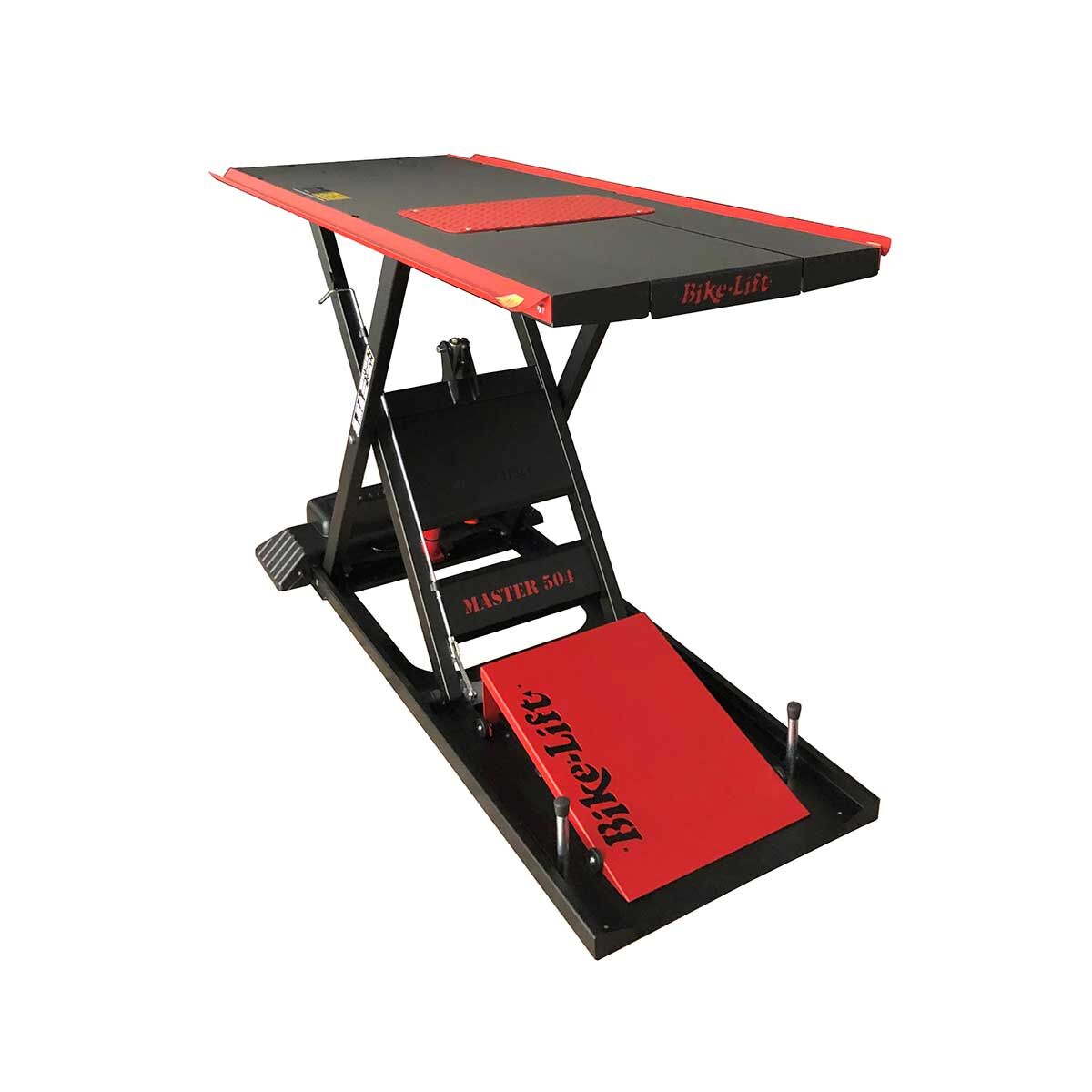

MASTER 504

Being able to lift a motorcycle up to 130 cm in height is not essential, but it helps greatly with efficiency and comfort while working on the vehicle.

The MASTER 504 is a practical solution for workshops with a diverse range of customers and motorcycle types, from scooters through to large sports bikes and sport tourers. It features a large retractable gate and, uniquely within the BIKE LIFT range, an integrated sliding ramp that automatically retracts into the lift during lifting.

Available Versions:

  • MA504-003 Electro-hydraulic pump
  • MA504-002 Air pump
  • MA504-004/R Electro-hydraulic pump with remote control

Specifications:

  • Capacity: 500 kg
  • Max height: 130 cm
  • Minimum height: 20 cm
  • Lifting table size: 210 x 75 cm
  • Mobile ramp dimensions: 70 x 50 cm
  • Overall dimensions of the lift: 220 x 99 cm
  • Side wings dimensions: 210 x 8.5 cm
  • Total lifting surface dimensions: 210 x 92 cm
  • Gate door dimensions: 60 x 36 cm
  • Weight: 250 kg

Electro-Hydraulic Power Unit:

  • Power: 1.1 kW
  • Europe: 230 Volts
  • Japan: 200 Volts
  • America: 110 Volts

Air Pump:

  • Air pressure: 7-10 Bar
  • Air consumption: 300L/Min

Standard Equipment:

  • Ramps: 1
  • Standard packaging: cardboard box with wooden pallet
  • Wheel stop: 1
  • Protective plate: 1
  • Side wings: 2

Delivery: Sportsbike gives you access to over 40,000 motorcycle parts from leading brands in Australia and Europe. We source these lifting benches from BIKE LIFT in Italy and ship them to Australia via sea freight. Shipping time is typically 6-8 weeks.

Need it quickly? Contact us before ordering and we'll confirm availability and lead time: info@sportsbike.com.au

SKU MA504
Brand Bike Lift
Unit Of Measure 1
